Product Introduction

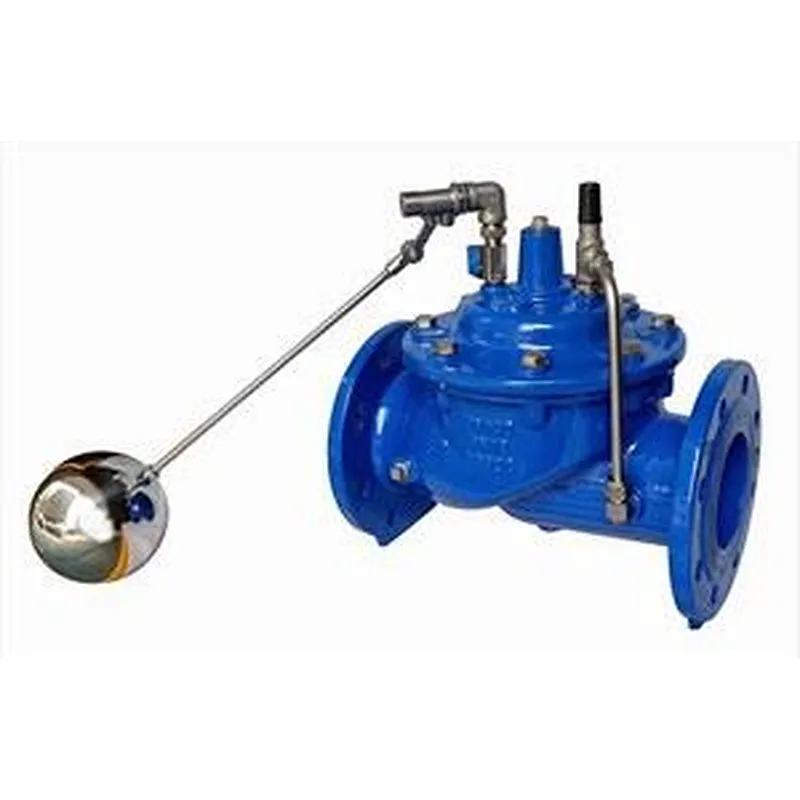

Remote Control Floating Valve has its valve disc and piston connected by the valve stem, and the opening and closing of the float guide valve is used to control the up and down movement of the sensitive element piston to open and close the main valve. It has the advantages of on/off service, low cavitation damage, decreased pressure loss, no throttling noise, protected diaphragm, easy level setting, less wear and tear.

Features

Remote Control Floating Valve can be installed anywhere with the height of the pool and the use of space, with easy maintenance, commissioning, inspection, reliable sealing, and long service life. This valve has reliable performance, high strength and flexible action. It is safe and reliable to use, easy to debug, and has a long life.

Basic Information

Size Range: 2”-24”

Pressure: PN10, PN16, PN25

Available Material: Cast Iron, Ductile Iron, Stainless Steel

Connection: Flanged acc. To EN1092.2, ISO 7005-2, ANSI/JIS/ AS2129
Epoxy Resin Coated to 300 microns inside & outside
Anti-cavitation Solution

Major Part Material:
1. Body/Bonnet: GGG50 or Stainless Steel
2. Spring: SS304
3. Stem: SS / Bronze
4. Disc Retainer: DI/SS/Bronze
5. Seat: SS/Brass/Bronze
6. Seal Rings: NBR/EPDM/Viton
7. Pilot: Stainless Steel or Brass
8. Pipe or Tubes: Copper or Stainless Steel
