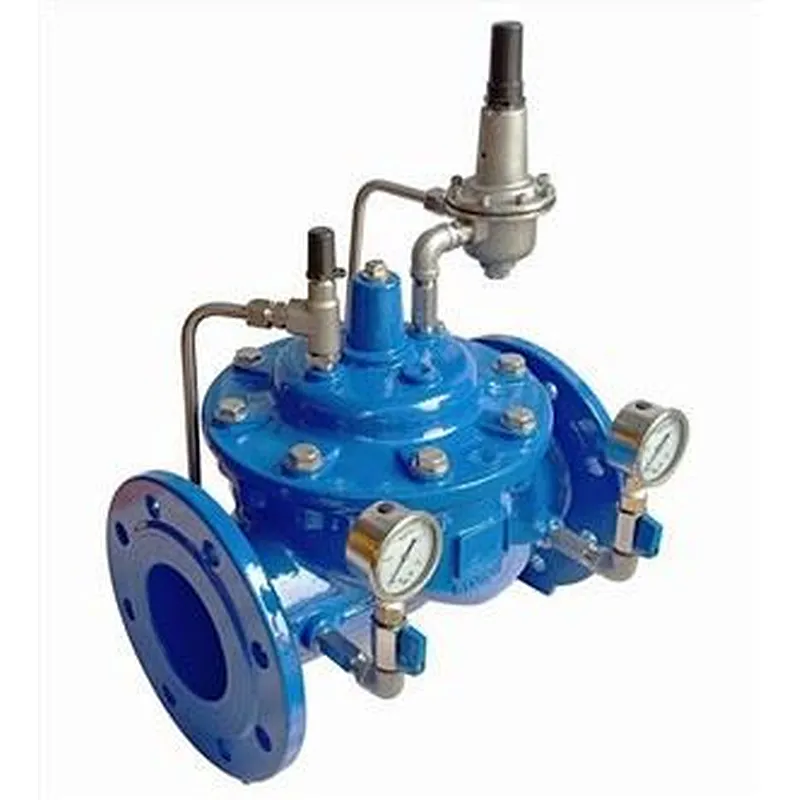

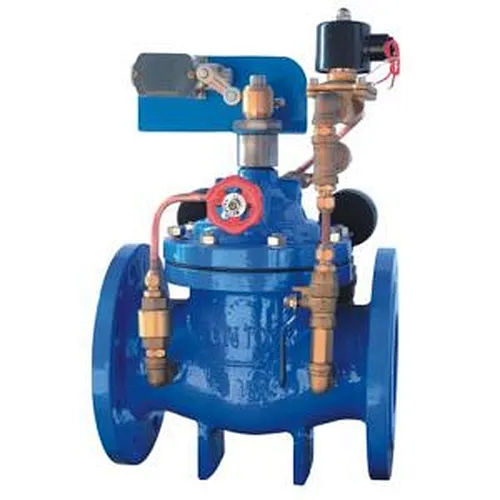

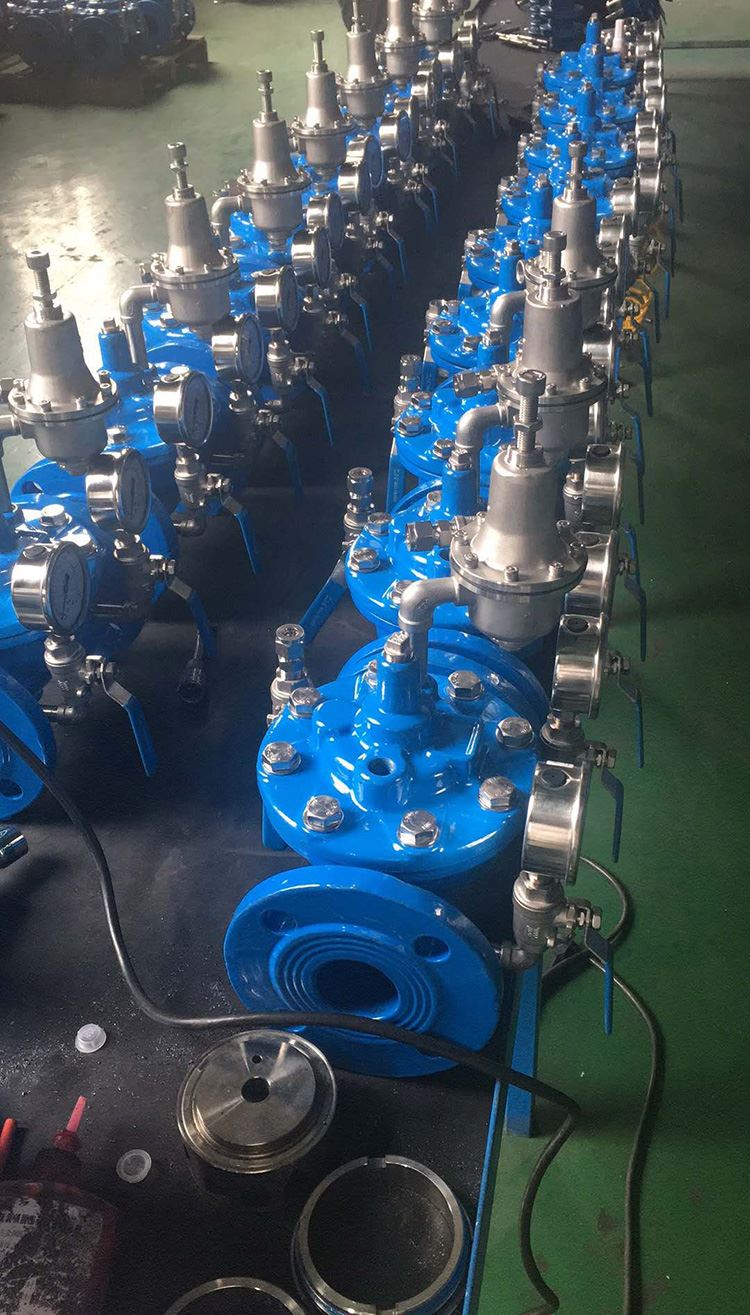

Adjustable Pressure Reducing Valve

Product Description

Pressure Reducing/Pressure Regulating Valve (PRV) automatically reduces a higher inlet pressure to a steady lower downstream pressure, regardless of changing flow rate and/or varying inlet pressure
Our Pressure Reducing Valves have adopted the latest technologies , with fully bore design, lowest head lose when fully open.
The PRESSURE REDUCING VALVE is designed with anti-cavitation for application where there is high potential for damage from Cavitation , which provide optimum internal pressure control through a unique anti-cavitation trim design.

Basic Information

Size Range: 2”-24”

Pressure: PN10,PN16, PN25

Available Material: Cast Iron, Ductile Iron, Stainless Steel

Connection: Flanged acc. To EN1092.2, ISO 7005-2, ANSI/JIS/ AS2129
Epoxy Resin Coated to 300 microns inside & outside
Anti-cavitation Solution

Major Parts Material:
1. Body/Bonnet:GGG50 or Stainless Steel

2. Spring:SS304
3. Stem:SS / Bronze

4. Disc Retainer:DI/SS/Bronze
5. Seat:SS/Brass

6. Seal Rings:NBR/EPDM/Viton
7. Pilot:Stainless Steel

8. Pipe/Tubes:Copper /Stainless Steel
