SPECIFICATIONS:

· Available Material: Ductile Iron , Carbon Steel, Stainless Steel

· Size Range: DN50-DN600 2”-24”

· Pressure Range: PN10, PN16, 150Lb, 300Lb

FEATURES&BENEFITS

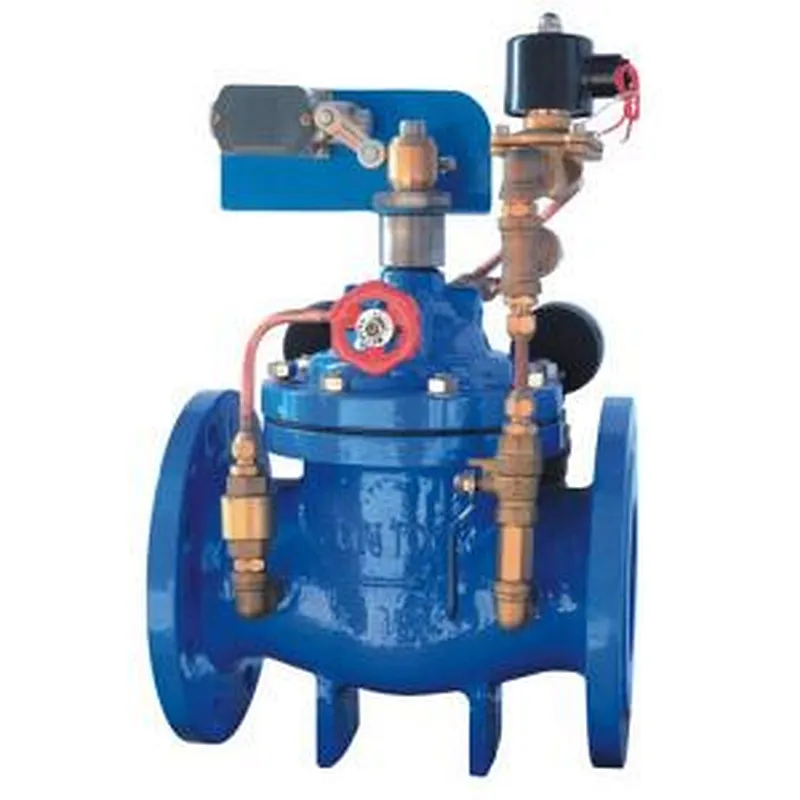

Pump control valve is installed in-line directly downstream of the pump discharge.

The valve is normally closed, and, on pump start-up, a pilot solenoid is energized to slowly open the valve, at a rate governed by the opening speed control. The pipeline flow is gradually increased.

When shut-down is required, the pilot solenoid is de-energized to close the main valve and reduce the flow. The pump is kept running while the booster pump control valve slowly closes. When the valve is almost fully closed and flow is virtually stopped, a cam triggers the limit switch to stop the pump.

With the internal drop check option, the built-in mechanical drop check closes immediately when the flow stops, regardless of the valve position. Whether due to a control malfunction, normal operation or a pump motor power failure, by closing before flow reverses, surges are minimized.

• Substantially reduces pump starting and stopping surges

• Separate opening and closing speed controls

• Cost effective pump control system

• Optional internal mechanical drop check reduces power failure surge
