Product Description

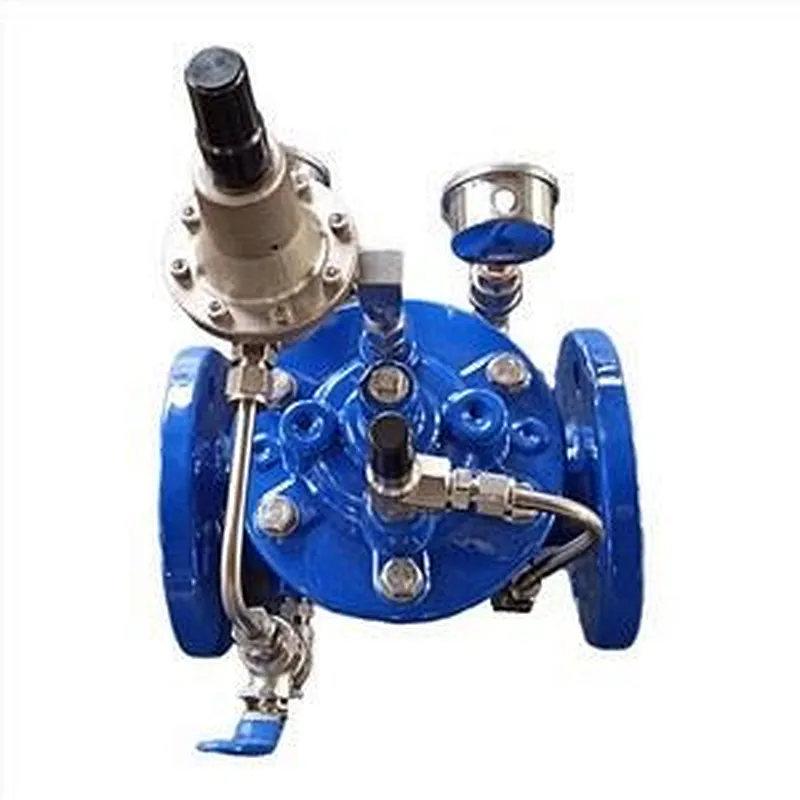

Control Valve Pressure Reducing Valve is a throttling element whose local resistance can be changed, that is, by changing the throttling area, the flow rate and the kinetic energy of the fluid can be changed. It reduces the waste of water and makes the system flow distribution reasonable, improves the system layout and working conditions. Also, with compact, modern shape design, it is easy to install, repair and maintain.

Features

Control Valve Pressure Reducing Valve is designed with anti-cavitation for application where there is high potential for damage from cavitation, which provides optimum internal pressure control through a unique anti-cavitation trim design. It has the characteristics of simple structure, easy maintenance, short working stroke, fast opening and closing time, good sealing performance, small friction between the sealing surfaces, and long life.

Basic Information

Size Range: 2”-24”

Pressure: PN10,PN16, PN25

Available Material: Cast Iron, Ductile Iron, Stainless Steel

Connection: Flanged acc. To EN1092.2, ISO 7005-2, ANSI/JIS/ AS2129
Epoxy Resin Coated to 300 microns inside & outside
Anti-cavitation Solution

Major Parts Material:
1. Body/Bonnet: GGG50 or Stainless Steel

2. Spring: SS304
3. Stem: SS / Bronze

4. Disc Retainer: DI/SS/Bronze
5. Seat: SS/Brass
