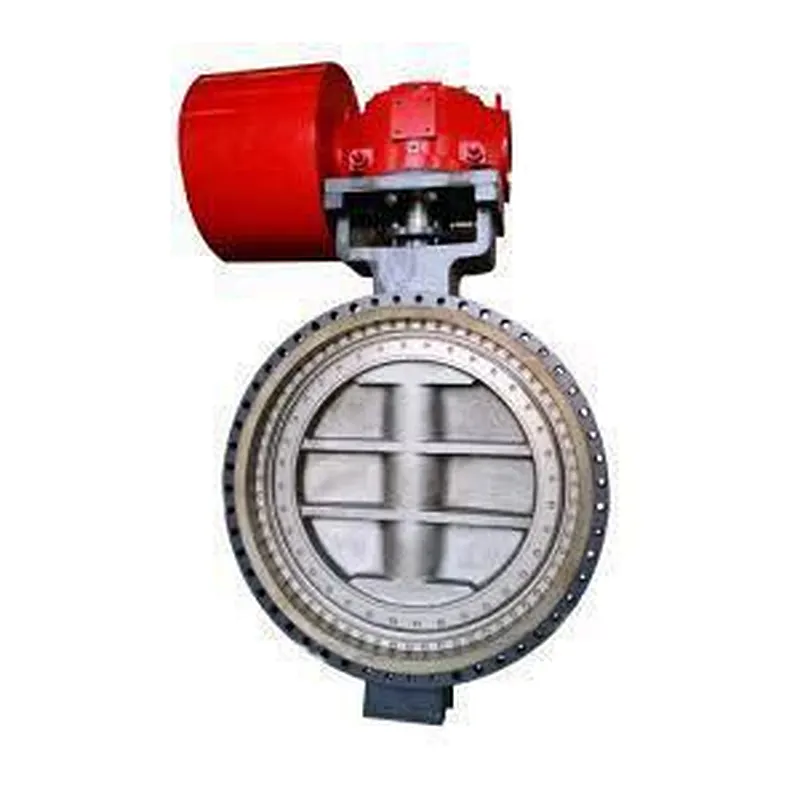

triple offset Butterfly Valve

Butterfly Valve

The metal seated butterfly valve is mainly used in industries that work under extreme pressure and temperatures. The metal seats are designed to make the valve much more versatile and durable, so that they can easily withstand high pressures and temperatures.

PRODUCT RANGE
Sizes NPS 2 to NPS 76
Class 150 to Class 600

DESIGN FEATURES
Flange, Wafer, Lug or BW

Triple Offset

MATERIALS

Available in Cast iron, A216 WCB, A217 WC6, WC9, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2, Monel, Inconel, Hastelloy (Casting)

FEATURES:

Triple Offset Butterfly Valve

Compared to gate, globe or ball valves of the same size and pressure class, Triple eccentric butterfly valve provides space and weight savings while minimizing installation and maintenance costs.

Triple eccentric butterfly valve is a premier isolation valve, well suited for operation in light vacuum to high-pressure applications. The standard, non-rubbing, metal-to-metal sealing system is inherently fire-safe. Applications requiring absolute zero leakage are ideally suited for triple offset technology.
