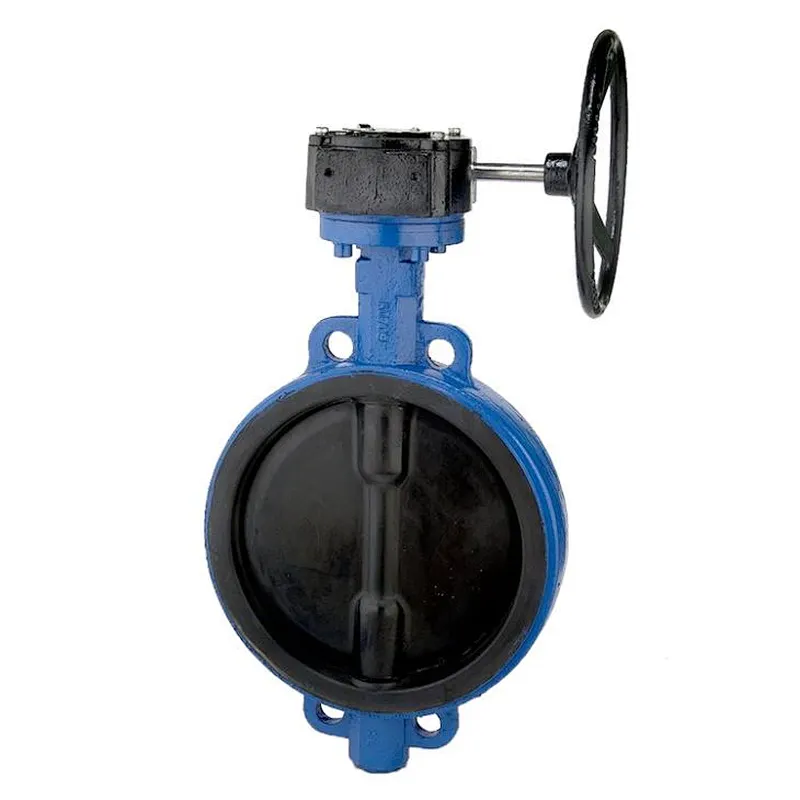

A soft seat butterfly valve with superior design features and materials of construction to provide repeatable tight shutoff in severe abrasive and corrosive environments for a variety of applications.

Specifications

· Size Range: 2"- 80"(50mm - 2000mm)

· Body Style: Wafer, Lug, Double Flange

· Temperature Range: -20°F to 400°F (-29°C to 204°C)

· Pressure Ratings: Bidirectional Bubble-tight Shutoff: 150 psi (10.3 Bar)
Body (CWP): 150 psi (10.3 Bar), 150Lb

· Body Materials:Cast Iron, Ductile Iron, Stainless Steel, Aluminum, Carbon Steel

· Disc Materials: Stainless Steel, Aluminium Bronze , EPDM Molded over SS, BUNA-N Molded over SS，Nylon 11 Coated Ductile Iron, Aluminum Bronze, Stainless Steel

· Seat Materials: BUNA-N, EPDM, PTFE Lined EPDM, FKM*Polyurethane

· Applications: Sanitary Service, Mildly Corrosive, Toxic Media，Potable Water, Wastewater, Seawater, HVAC
