Product Introduction

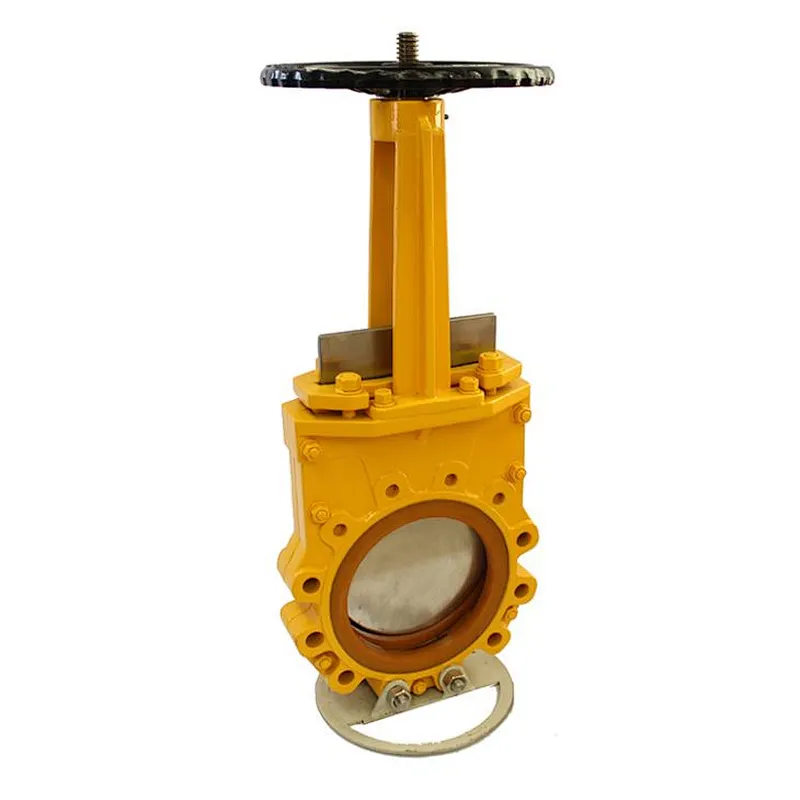

Urethan knife gate valve has the opening and closing member of the gate, and the direction of movement of the gate is perpendicular to the direction of the fluid. By the knife blade gate can cut fiber material to cut off the media. The gate has two sealing surfaces, and the most commonly used mode is that the two sealing surfaces form a wedge, with the wedge angle varying with the parameters of the valve. It has various sealing methods, hard seal, soft seal, single-sided seal, double-sided seal, etc.

Features

Urethan knife gate valve is made of carbon steel, and its weight is about 20%-30% lighter than traditional gate valves, and it is easy to install and maintain. It can improve the closing sealing performance of the conveying pipeline system and eliminate the leakage to the maximum extent, which will play a positive role in promoting the production efficiency and protecting the environment.

· Size Range:2-24"(50-600mm)

· Pressure Rating:150psi (10bar)

· Body Style:Single Piece, Wafer, Lug

· Packing Options:

· Design:Manufacturer Standard

· Testing:MSS SP-81

· Face to Face:Per Industry Standard

· Drilling:ASME B16.5 CL150, ASME B16.47 CL150

· Actuator Options:Bevel Gear Standard 10-24", Pneumatic, Hydraulic, Electric
