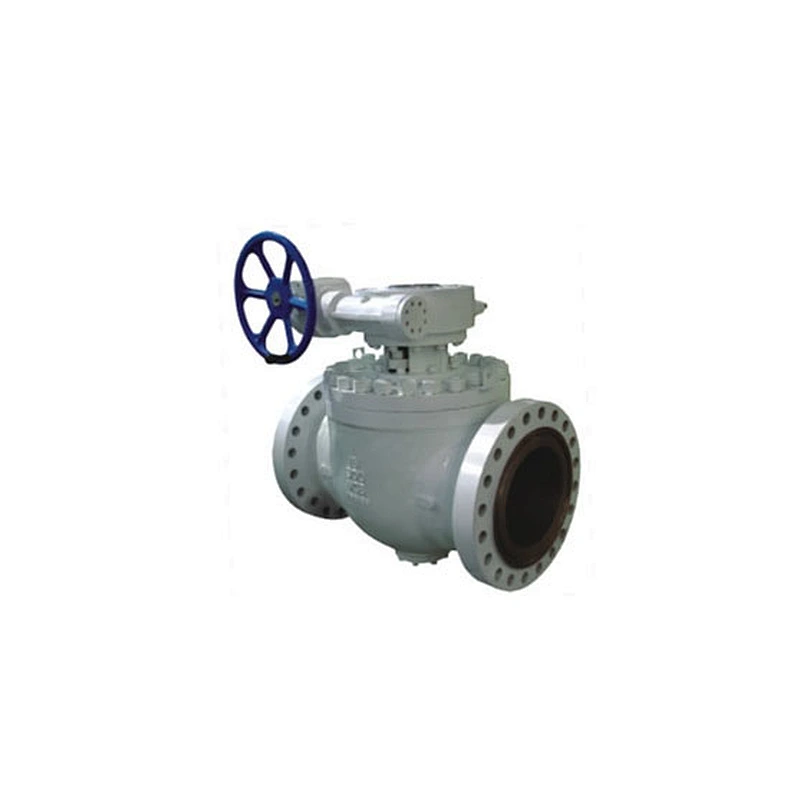

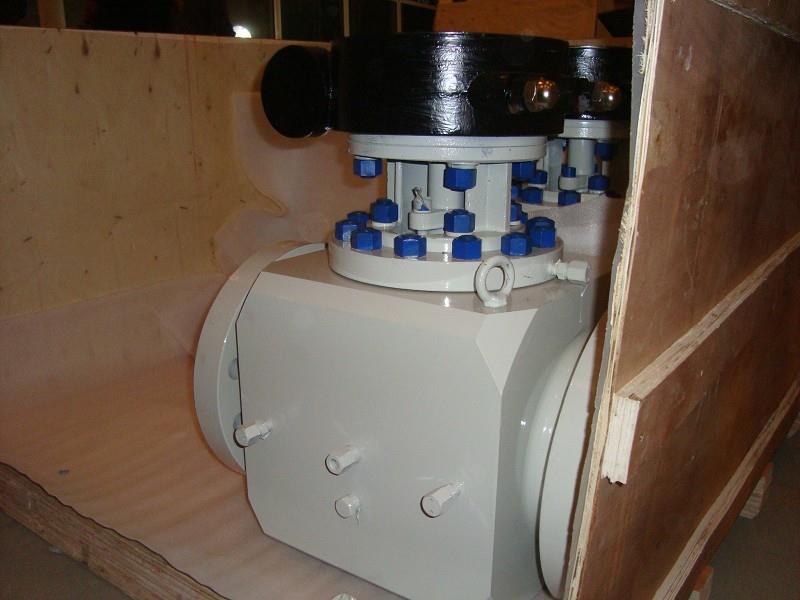

SQ trunnion mounted top entry ball valves are produced according to API 6A, API 6D, ASME B16.34 and ISO 17292 standards. The valves can be offered with both soft , metal or composite seats that can be configured with single or double piston effect to provide an effective double block and bleed (DB&B) in both closed and, on request, in open position.

Technical Specifications:

DESIGN & MANUFACTURE STANDARD: API 608,API 6D,BS 5351,ASME B 16.34, API6A
FIRE SAFE DESIGN AS PER：API 607/ISO 10497
INSPECTION & TEST AS PER：API 6D,ISO 5208,API 598

Product Range:

Size Range: 2”-24”

Pressure Range: 150Lb-2500Lb

Available Material: WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,F304L,F316L, 4A, 5A, 6A, F51, F55, ALLOY 625, ALLOY 825

Features and Benefits:

1. Easily in-line inspection and maintenance

2. Maintenance can be performed without removing the valve from the line

3. The independent ball and stem design, which minimizes the side thrust caused by pressure by the ball, increases the efficiency.

4. Less potential leakage risks than the side entry ball valves.
