Product Introduction

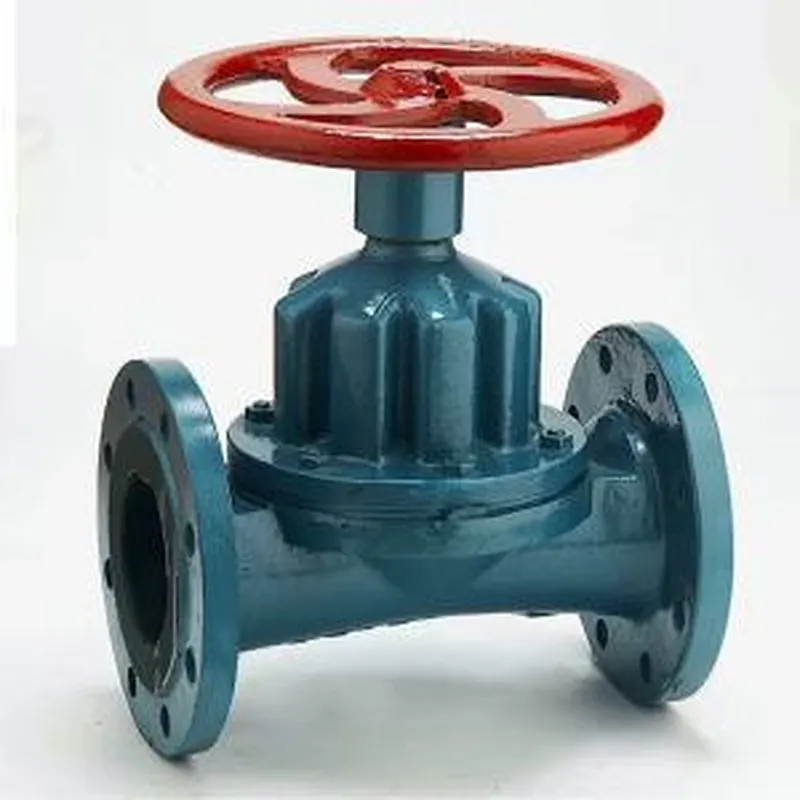

Straight Type Diaphragm Valve is specially designed to control non-corrosive or general corrosive media, and the valve body cavity surface without lining or covered with a variety of optional rubber, suitable for different working temperatures and liquid pipelines. It is a special form of shut-off valve, which has a resilient sealing opening and closing element to ensure no internal leakage.

Features

Straight Type Diaphragm Valve has streamlined flow paths, resulting in minimal pressure loss. It has the diversity of lining materials, and can be applied to a variety of media, and has the characteristics of high strength and good corrosion resistance. Also, this valve has compact structure, easy installation, fine finish, sturdy design, etc.

Specifications:

Size Range: DN50-DN400 2”-16”

Pressure Range: PN10, PN16, 150Lb

Design and manufacture: BS5156

Face to face dimension: BS5156

Flange connection:BS4504、DIN2532、JIS B2212、ANSI B16.1、ISO2004

Available Materials:

Body : Cast iron,spheroidal graphite cast iron,carbon steel,stainless steel

Bonnet Cast iron,spheroidal graphite cast iron,carbon steel,stainless steel

Lining: PFA, FEP, EPDM

Diaphragm: PFA , FEP, EPDM
