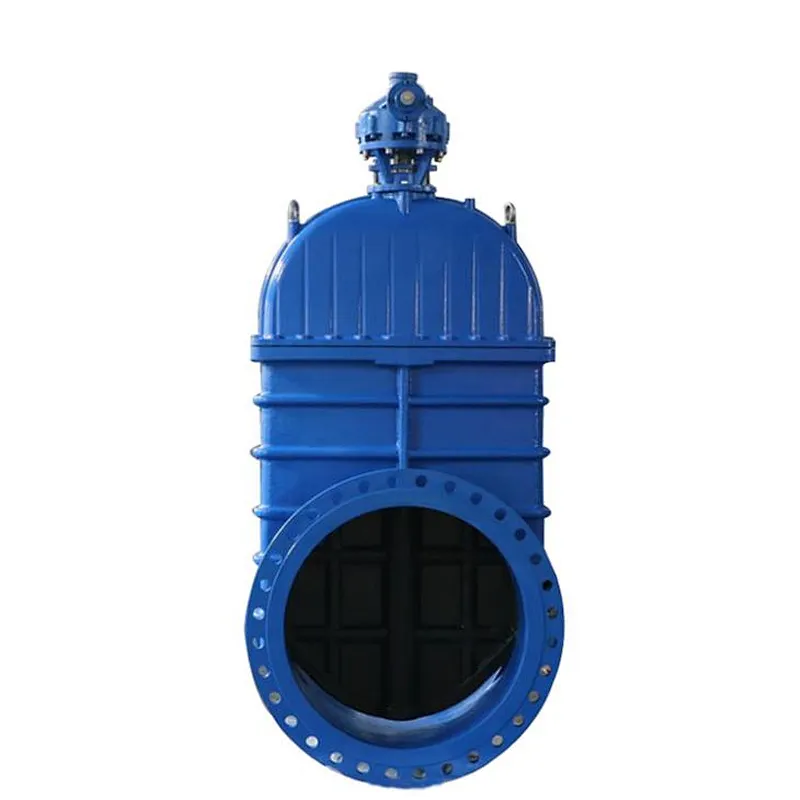

Soft seat gate valve

Product Range:

Size Range: DN50-DN1000, 2”-40

Pressure Range: PN10-PN25, 150PSI, 200PSI, 150Lb

Available Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel

Features

§ 100% tight sealing is achieved through EPDM covered wedge fully contacting the fusion bonded epoxy coated flow surface.

§ The body and bonnet are manufactured from ductile iron castings. It is resistant to high tensile stress occurring in pipelines.

§ Low operating torque due to plastic sliding guides on the wedge.

§ Maintenance-free and corrosion-resistant stem sealing.
With O-ring sealing.

§ Up to DN 300 (inclusive) sizes are supplied with hand wheel as default DN 350 (inclusive) and above can be supplied with gear box as optional.

§ Large conical stem hole in the wedge prevents stagnant water.

§ Wedge and body guide rails ensure stable operation.

§ Stainless steel stem with rolled threads for high strength & low operation torque.

§ Inner and outer surfaces are coated with minimum 250 microns fusion bonded epoxy. 300 microns is available.

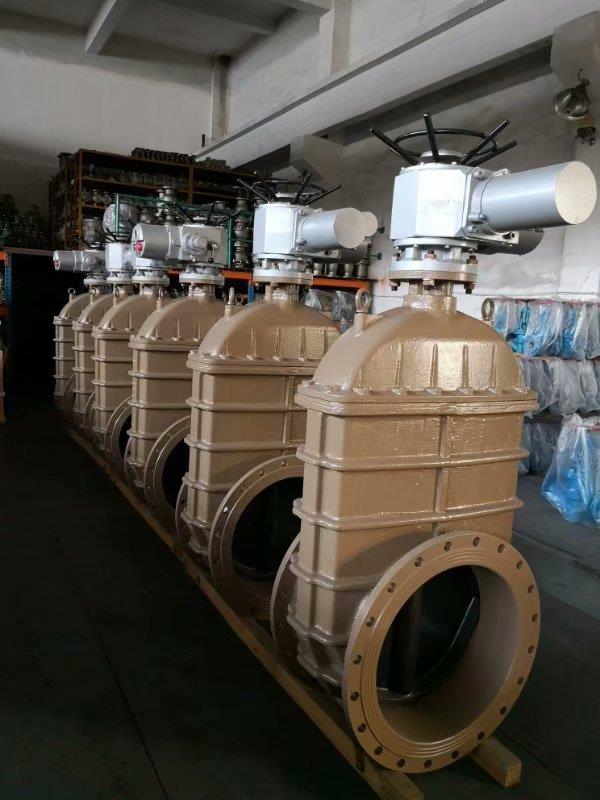

§ Suitable to use with aboveground and underground applications. Can be operated with actuator, gearbox, handwheel and extension spindle.

§ The top of the shaft bearing and shaft nuts are made of MS58 brass. High precision machining enables low operation torques.

§ Full bore characteristics without distruption of flow results in low pressure drops across the valve.
