Technical Specifications:

1. Main Valve: Straight through globe valve

2. Spool type: non-balanced single seat plug type

3. Size Range: DN25-DN350( 1”-14”)

4. Pressure Range: PN16-PN100(150Lb-600Lb)

5. Bonnet type: Standard type, radiator type, low temperature extended type, bellow seal type

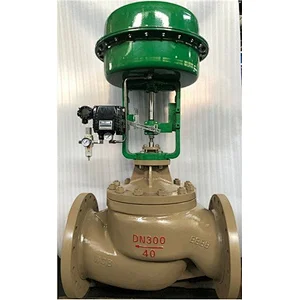

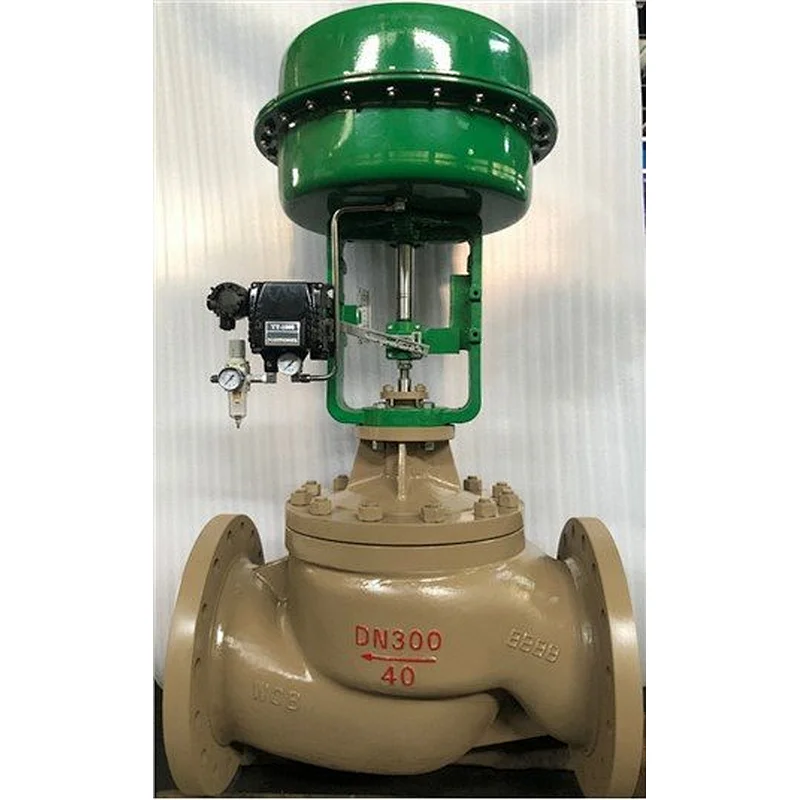

6. Actuator: Pneumatic :multi-spring diaphragm actuator, piston type actuator

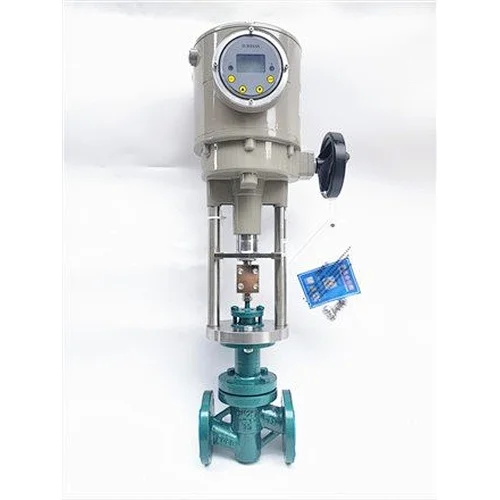

Electric : smart actuator, PSL series actuator

7. Available Body Material: WCB, LCB, WC6, WC9, CF8, CF8M, CF3, CF3M

Features:

1. Low flow resistance

2. Small unbalanced force

3. Big permission pressure differential

4. Steady operation

5. Compared with the ordinary single and double seat-regulating valve, it has low noise, simple structure and convenient assembling and dismantling characteristics.
