Product Introduction

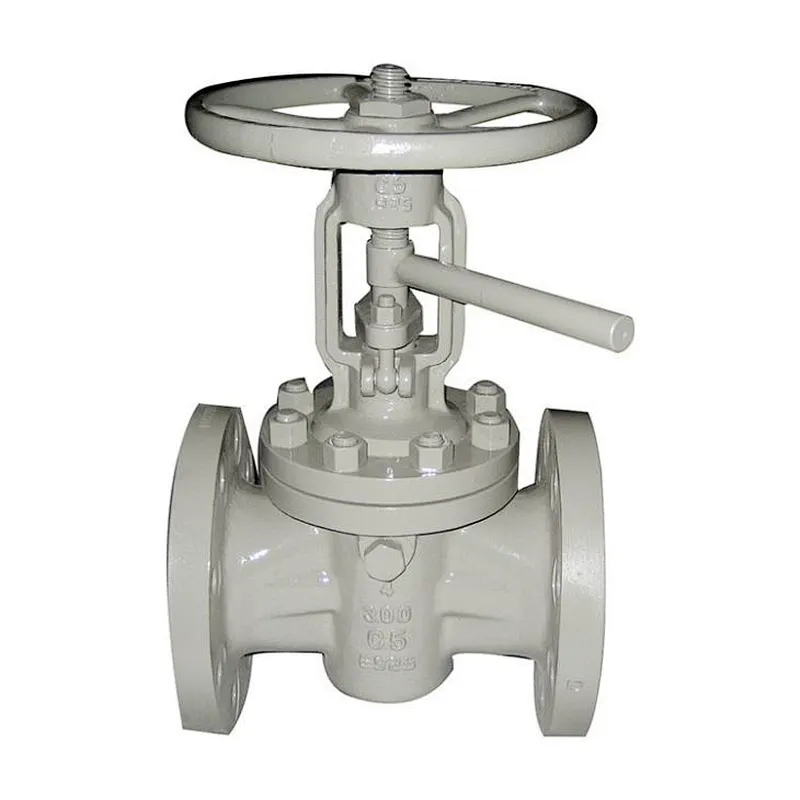

Lift Type Plug Valve is metal seated non-lubricated plug valve and is recommended for use in hash application in the chemical or petrochemical industry. It adopts top entry design for easy maintenance. The Fluid resistance is small, because the medium flows through the plug valve, the fluid channel can not be reduced, and does not change the flow direction. It also has the advantages of simple structure, few parts, small size and light weight.

Features

Lift Type Plug Valve has double mechanical barrier, double block and bleed options. It also has bidirectional function with fire safe design. It opens and closes quickly, and the direction of media flow is not restricted. Simply rotate the plug 90°, you can complete the opening and closing. This product is widely used in oilfield extraction, transmission and refining equipment, petrochemical, chemical, gas, natural gas, liquefied petroleum gas, etc.

Production Range:
Size Range: DN 1/2” to 20” , DN15-DN500

Pressure Range: 150Lb-1500Lb

Available Materials: Forging for NPS ≤ 2 (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5), Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2), Monel, Inconel, Hastelloy

Technical Specifications:

• Design & manufacture according to API 6D,

• Face-to-face according to API 6D, ASME B16.10

• End Connection according to ASME B16.5 (RF, RTJ), ASME B16.47(RF, RTJ), MSS SP-44 (NPS 22 Only), ASME B16.25 (BW)

• Test & inspection according to API 598, API 6D

• Also available per NACE MR-0175, NACE MR-0103, ISO 15848
