Product Introduction

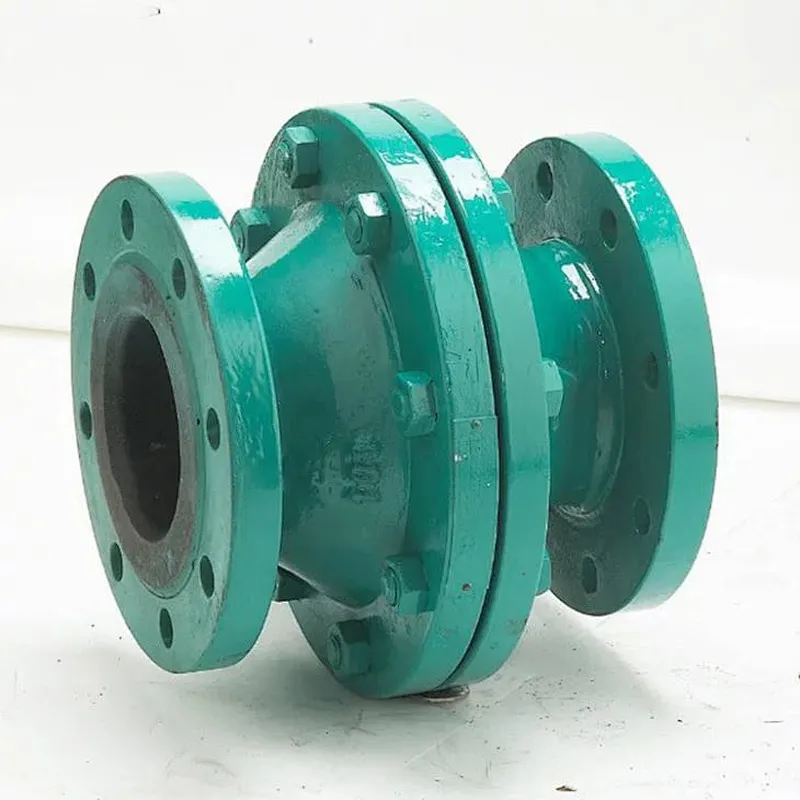

Ball Float Pattern Rubber Lined Check Valve is designed for controlling the usual corrosive media. Its body inner surface is lined with different rubbers. It can be selected to suit with different working temperatures and fluid pipelines and be suitable for the one way open and close to prevent the refluence of the medium in the pipelines or facilities.
Features
Ball Float Pattern Rubber Lined Check Valve features a high strength and prominernt performance of corrosion resistance. Also, with compact, modern shape design, it is easy to install, repair and maintain. It not only improves the use of energy efficiency, increases the safety of production equipment, reduces maintenance costs and frequent maintenance, but also can provide a clean and safe working environment.
Product Range:
Size: 2”-24” , DN50-DN600
Pressure: 150Lb-300Lb, PN10, PN16, PN25
Technical Specifications:
Body: | Cast iron, spheroidal graphite cast iron |
Nominal | DN 15 to 600 mm |
diameter: | |
Temperature | 85 ~ 150 ºC |
range: | |
Pressure: | 0.6, 1.0, MPA |
Connection: | Flange ( DIN or ANSI Class 150 & Class 300) |
Inspection: | Lining layer: Electro spark detecting |
Lining: | Rubber |
Ball: | Aluminium alloy core fully covered with rubber |
